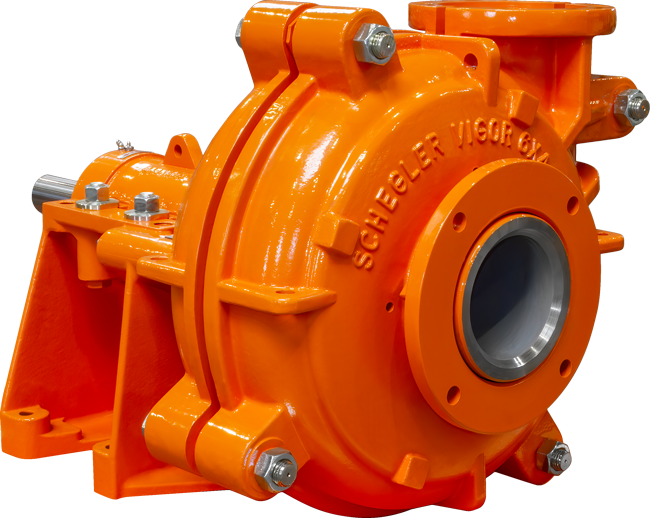

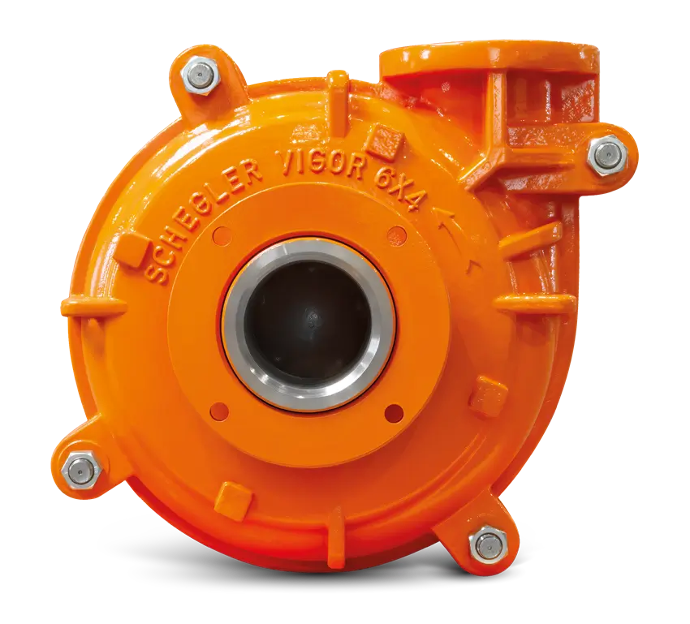

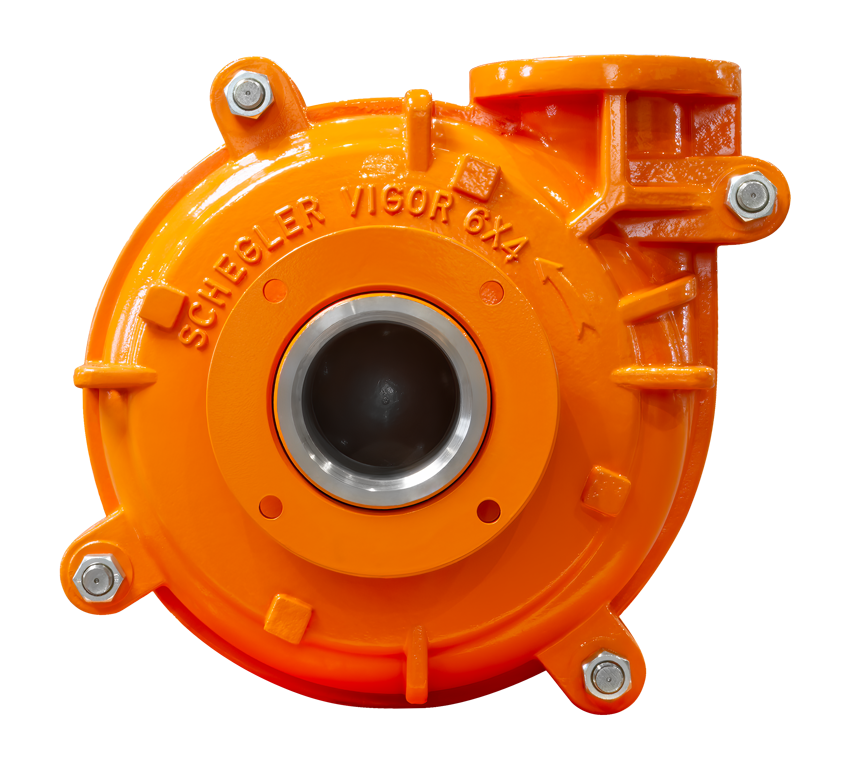

Vigor™ Horizontal Series
- Discharge sizes 25 to 450mm (1″ to 18″)
- Capacity through 5000m³/h
- Heads through 70m
This horizontal slurry pump is designed for applications where abrasive or corrosive liquids with particles must be pumped. Fluids can range from wastewater to abrasive slurries.
Numerous industries rely upon Vigor’s robust modular construction for countless applications, making this highly adaptable slurry pump tested and tried in the most severe conditions.
The wet end parts of this pump are entirely replaceable, which facilitates inspections and provides ease of maintenance. The unparalleled wear resistance of its wet end parts makes Vigor a high-performance slurry pump requiring low maintenance. This results in a reliable, efficient pump with the lowest total cost of ownership for abrasive processes.

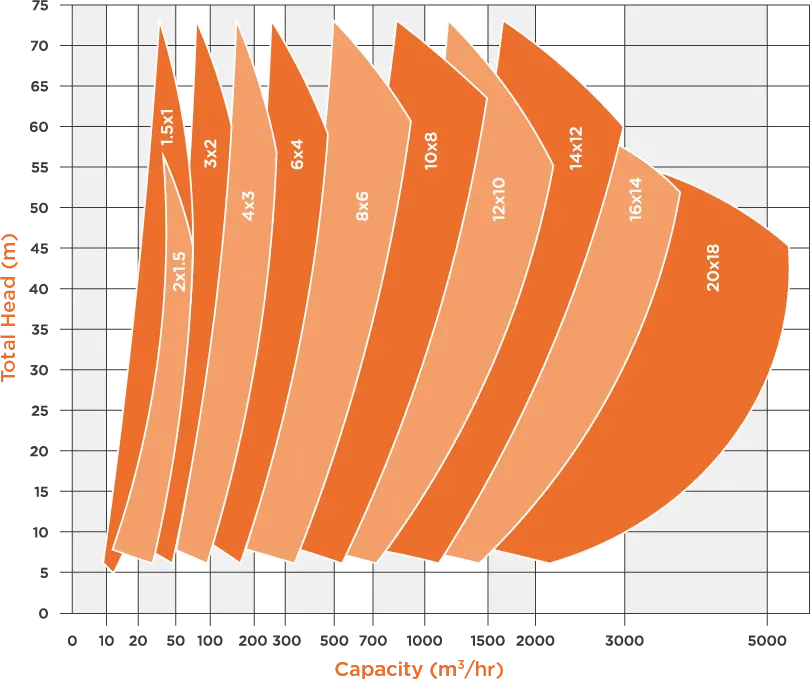

Vigor™ Family Curves
Note: The curves above show pump performance with clean water. The curves should only be used to make a primary selection.

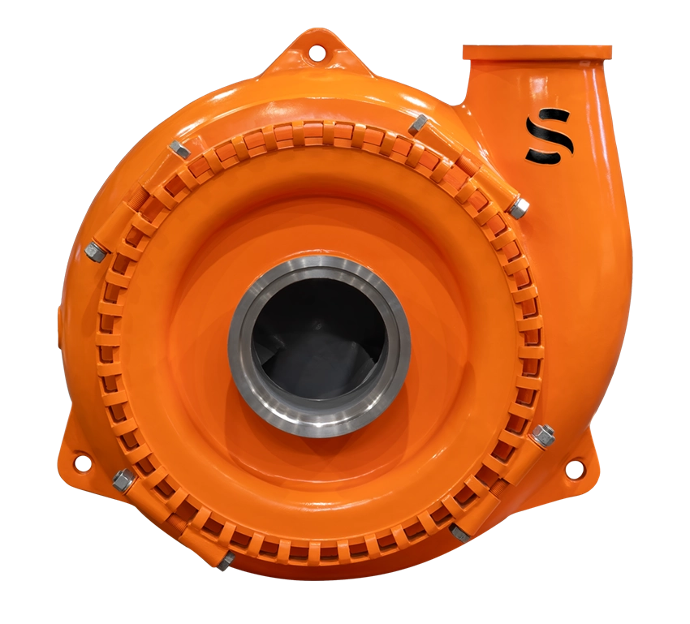

Gravel™ Horizontal Series
- Discharge sizes 100 to 600mm (4″ to 24″)
- Capacity through 9000m³/h
- Heads through 50m
The Gravel series pumps specialize in efficiently handling abrasive slurries with large particles, combining continuous performance with minimized maintenance and ownership costs. These pumps are constructed robustly, with a modular design that not only facilitates easy maintenance but also ensures flexibility by offering wear components in various highly resistant alloys tailored to specific applications.
Overall, the Gravel series stands out for its operational efficiency and versatility across various applications. It promises exceptional performance with a focus on reducing the total cost of ownership, marking it as a reliable asset for industries dealing with abrasive and challenging pumping scenarios.

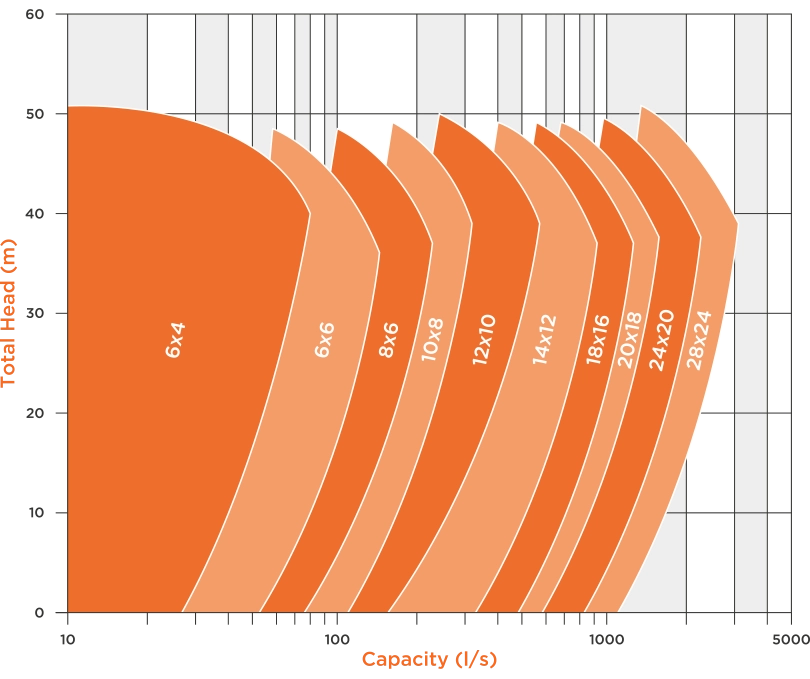

Gravel™ Family Curves
Note: The curves above show pump performance with clean water. The curves should only be used to make a primary selection.
Gravel™ Specification Sheets

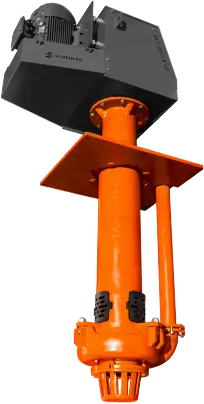

Verido™ Horizontal Series
- Discharge sizes 40 to 250mm (1.5″ to 10″)
- Capacity through 1135m³/h
- Heads through 50m
Schegler designed its Verido vertical cantilevered slurry pump to handle abrasive and corrosive liquids and slurries while being submerged in sumps or pits. Its cantilever design avoids submerged bearings or a shaft seal, which ensures minimum maintenance and eliminates the need for external flushing water. Its design makes the Verido suited for continuous use in applications that require greater reliability and durability than other vertical pumps or submersible pumps can provide.
The Verido pump range is available in various lengths to cover most standard sump depths. In addition, this series offers a wide range of configuration options, which allow the pump to be tailored to a specific application. Wet-end components are available in a variety of alloys and elastomers, allowing your Schegler distributor to select the optimal combination of materials for maximum wear resistance in your application.

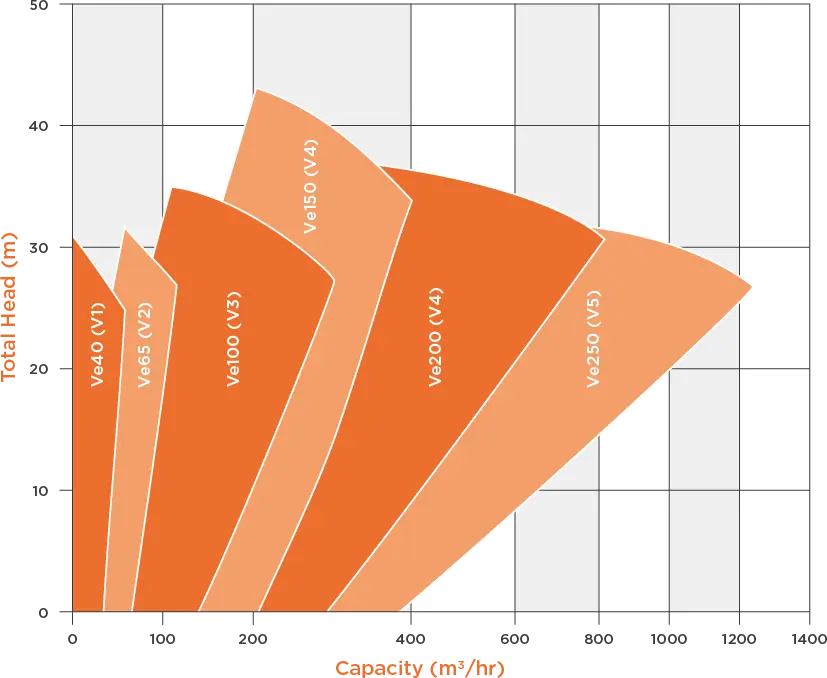

Verido™ Family Curves
Note: The curves above show pump performance with clean water. The curves should only be used to make a primary selection.
Verido™ Specification Sheets
